One-Way & Two-Way ANOVA: Compare Many Groups

Two groups are easy. Three, four, or more is where the trouble starts — and where ANOVA earns its keep. It compares all the means at once, in a single honest test, and then tells you exactly which groups drove the difference.

Our process data was made on three recipes: Standard, Fast, and Fine. Do they produce the same film thickness on average? You might be tempted to run a t-test on every pair. Don't. With three groups that's three tests; with five it's ten. Each test carries its own chance of a false alarm, and those chances pile up. Run enough comparisons and you're almost guaranteed to find a "significant" difference that isn't real. ANOVA — Analysis of Variance — solves this by asking one question instead of many.

One-way ANOVA: one factor, many groups

Run Analyze ▸ ANOVA ▸ One-Way ANOVA, set Responses to Thickness_nm and Sub-Groups to Recipe. The output is a compact table that answers a single question: are all three recipe means equal, or is at least one different?

A one-way ANOVA table for thickness by recipe — One-way ANOVA: thickness by recipe, summarized in a single F-test.

The clever idea behind ANOVA is to partition the variance. The total spread in thickness gets split into two parts: variation between the recipe groups (the signal) and variation within each group (the noise). The F-statistic is simply their ratio. If between-group variation dwarfs the within-group noise, F is large and its p-value is small — the recipes really do differ. If the groups overlap heavily, F is near one and you can't tell them apart.

Why not many t-tests? Each test at the 5% level has a 5% false-positive chance. Run 10 of them and the chance of at least one false alarm climbs past 40%. ANOVA holds the overall error rate at 5% with a single test — that's the whole point.

Checking the assumption: equal variances

Before you lean on that F, it's worth one quick check. ANOVA assumes the groups share a similar spread — homogeneity of variance. If one recipe is wildly more variable than the others, the F-test can mislead. To test it, right-click the ANOVA row and choose Test homogeneity of variance (Levene's)…. Levene's test asks the same between-versus-within question, but about the spread rather than the means; Stratum uses the robust median-centered (Brown–Forsythe) form. A comfortable p-value — above the usual 0.05 — says the assumption holds and your F-test stands; a tiny one warns the groups vary too differently to take the F at face value.

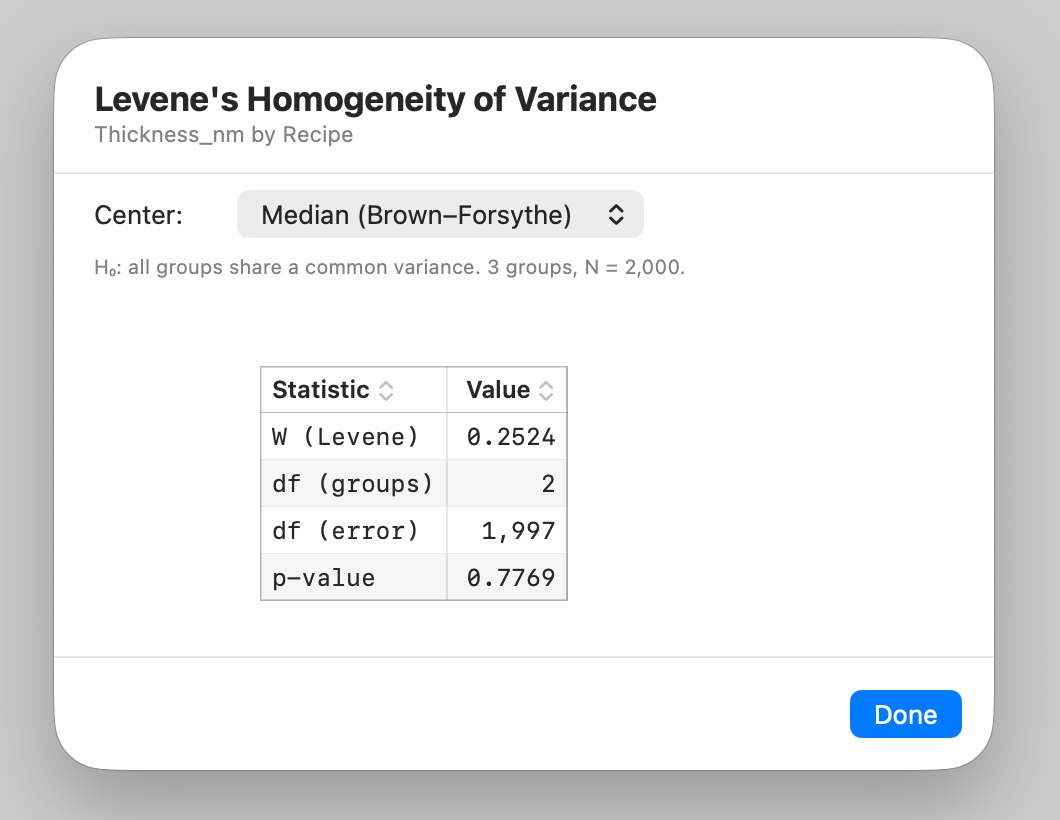

Levene's homogeneity-of-variance test sheet for the recipe groups — Levene's test checks whether the groups share a similar spread before you trust the F.

Post-hoc tests: which groups actually differ?

A significant ANOVA tells you something differs, but not what. For that you need a post-hoc test that compares each pair while keeping the inflated-error problem in check. Right-click the ANOVA row and choose Post-hoc (Tukey HSD)… — the standard choice for all pairwise comparisons after a one-way ANOVA. Stratum opens a sheet listing every pair's mean difference, q statistic, adjusted p-value, and 95% interval.

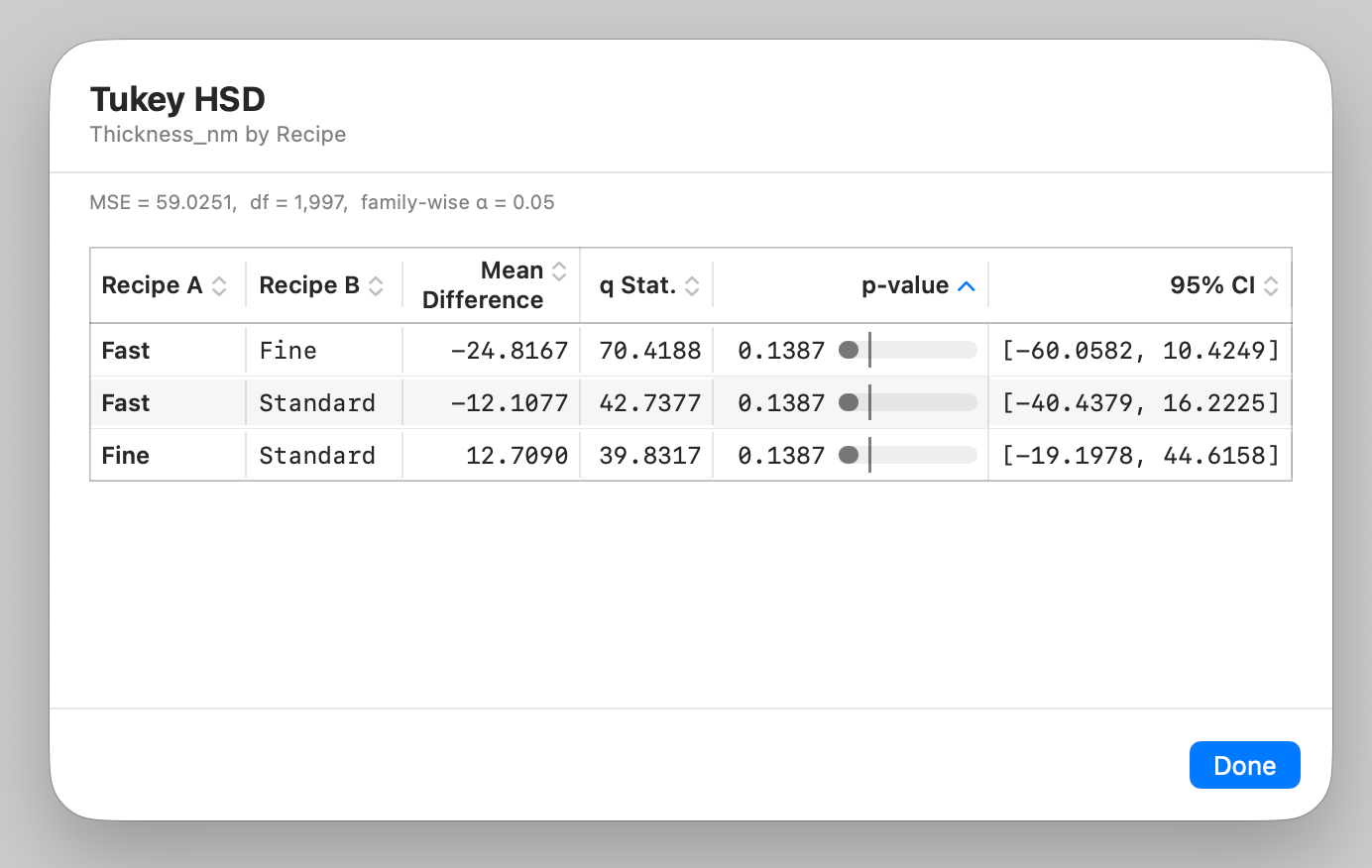

Post-hoc pairwise comparisons of recipe means — Post-hoc comparisons pinpoint exactly which recipe pairs differ.

Now you can say something concrete: perhaps Fine differs from both Standard and Fast, while Standard and Fast are statistically indistinguishable. That's the level of detail ANOVA plus post-hoc gives you.

Two-way ANOVA: two factors at once

Thickness might depend on more than the recipe. The Tool that ran the lot could matter too. Analyze ▸ ANOVA ▸ Two-Way ANOVA lets you test both factors in one model: set Responses to Thickness_nm, add Tool and Recipe in the Factors picker, and turn on the Interaction toggle. It separates each factor's own main effect from the way they combine.

A two-way ANOVA table for thickness by tool and recipe — Two-way ANOVA: tool and recipe as separate factors, plus their interaction.

The interaction effect

The most interesting row in a two-way table is often the interaction. A main effect says "recipe matters, on average." An interaction says something subtler: the effect of one factor depends on the other — maybe the Fine recipe is best on Tool-A but worst on Tool-D. When the interaction is significant, you can't talk about either factor in isolation; they only make sense together.

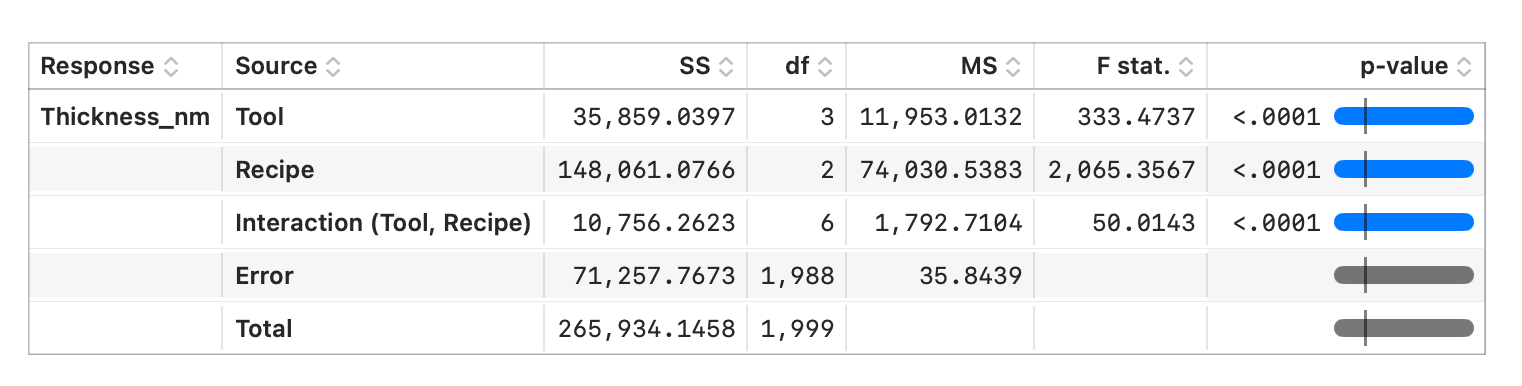

An interaction effect between tool and recipe — An interaction: the effect of recipe changes from tool to tool.

Sanity-check the groups visually. ANOVA assumes the groups share roughly equal spread and have approximately normal residuals. The quickest gut check is a picture: right-click the result and choose Drill Down to Box-Whisker to eyeball each group's spread and symmetry side by side. Wildly different box heights or heavy skew are your cue to be cautious — or to reach for the rank-based alternative from the last lesson.

Follow along

Dataset: process_measurements.csv
You'll use: One-way ANOVA (thickness by recipe), Levene's homogeneity-of-variance check, Tukey HSD post-hoc comparisons, two-way ANOVA (tool and recipe), and the interaction term
Up next: Lesson 16 — MANOVA, Contingency & Differences

ANOVA compares many groups on a single response. But what if you measure several responses at once — thickness, conductivity, resistivity — and want to test them together? And what about variables that are categories rather than numbers? Those are the questions for the next lesson.
